Description:

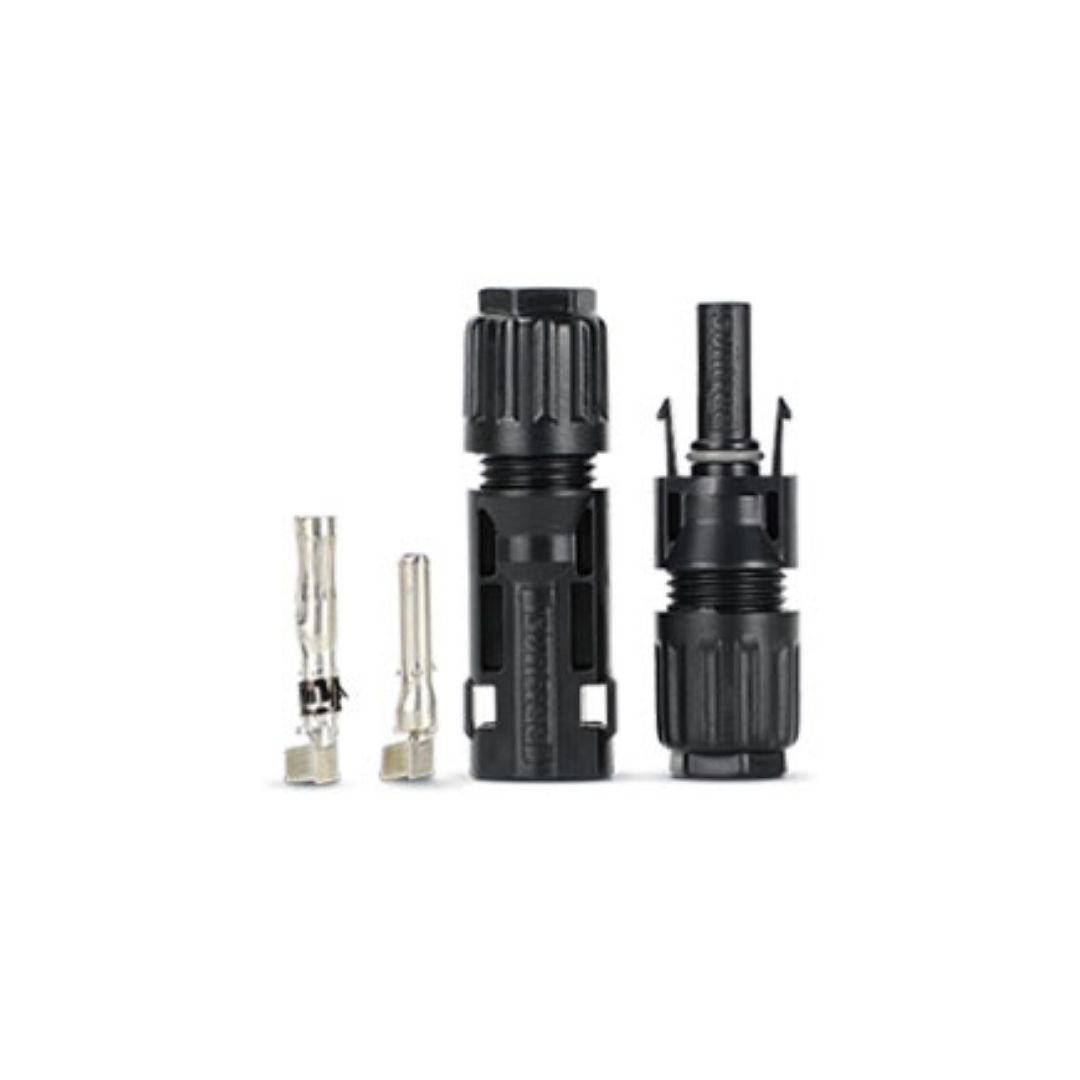

IP67 Waterproof. Simple on-site processing. PPO high strength material. High quality waterproof ring. High current carrying capacity. Insulation material to prevent electric shoock. Mating safety provided bykeyed housings.
Technical Specifications:
- Brand: Suntree
- Rated current: 30A
- Rated voltage: 1000V DC
- Test voltage: 6000V(50Hz,1min)
- Overvoltage category/Pollution degree: CATⅢ/2
- Contact resistance of plug connectors: 1mΩ
- Contact material: Copper,Ag plated
- Insulation material: PPO
- Degree of protection: IP2*/IP67
- Plame class: UL94-VO
- Safety class: Ⅱ
- Suitable cable: 2.5-6.0mm²
- Insertion force/Withdrawal force: ≤50N/≥50N
- Connecting System: Cromp connection
- Temperature range: -40℃~+125℃
