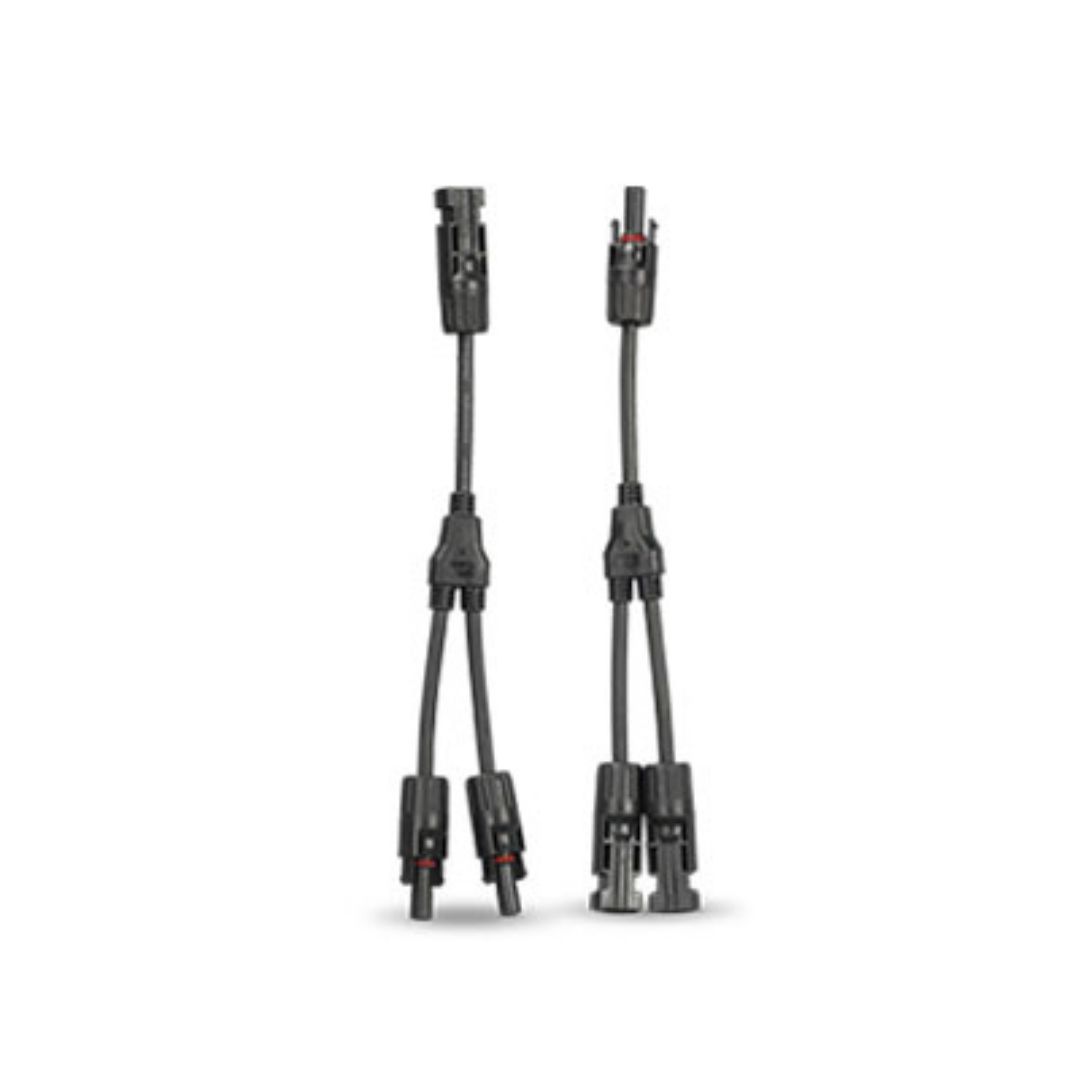

Description:
IP65 Waterproof. Simple on-site processing. PPO high strength material. High quality waterproof ring. High current carrying capacity. Insulation material to prevent electric shoock. Mating safety provided bykeyed housings.
Technical Specifications:
- Brand: Suntree
- Rated current: 30A
- Rated voltage: 1000VDC
- Test voltage: 6000V (50Hz, 1min)
- Overvoltage category/Pollution degree: CATⅢ/2
- Contact resistance of plug connectors: ≤0.5mΩ
- Contact material: Copper, Ag plated
- Insulation material: PPO
- Degree of protection: IP2*/IP65
- Plame class: UL94-VO
- Safety class: Ⅱ
- Suitable cable: 2.5mm²~6.0mm²
- Insertion Withdrawal force: ≤50N
- Cable length: 8cm
- Temperature range: -40℃~+110℃
