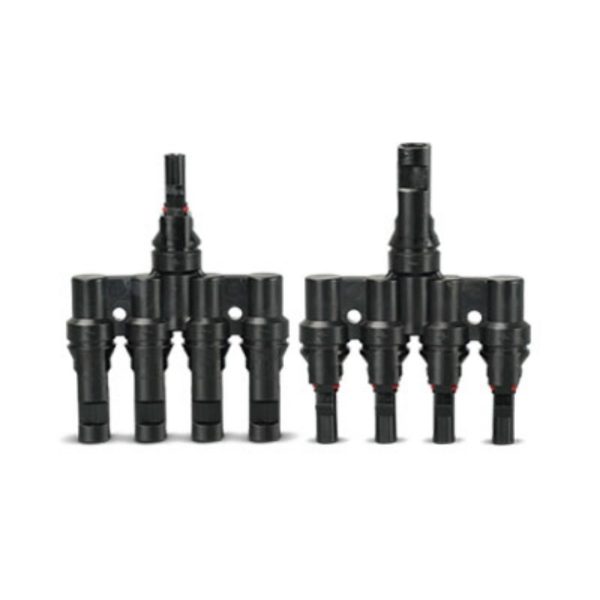

Description:
IP67 Waterproof. Simple on-site processing. PPO high strength material. High quality waterproof ring. High current carrying capacity. Insulation material to prevent electric shoock. Mating safety provided bykeyed housings.
Technical Specifications:
- Brand: Suntree
- Insulation Material: PPO
- Contact Material: Copper, Tin plated
- Suitable Current: 30A
- Rated Voltage: 1000V (TUV) 600V (UL)
- Test Voltage: 6KV (TUV50HZ, 1min)
- Contact Resistance: <0.5mΩ
- Degree Of Protection: IP67
- Ambient Temperature Range: -40℃ ~+85℃
- Plame class: UL 94-VO
- Safety class: Ⅱ
- Pin Dimensions: Φ4mm
