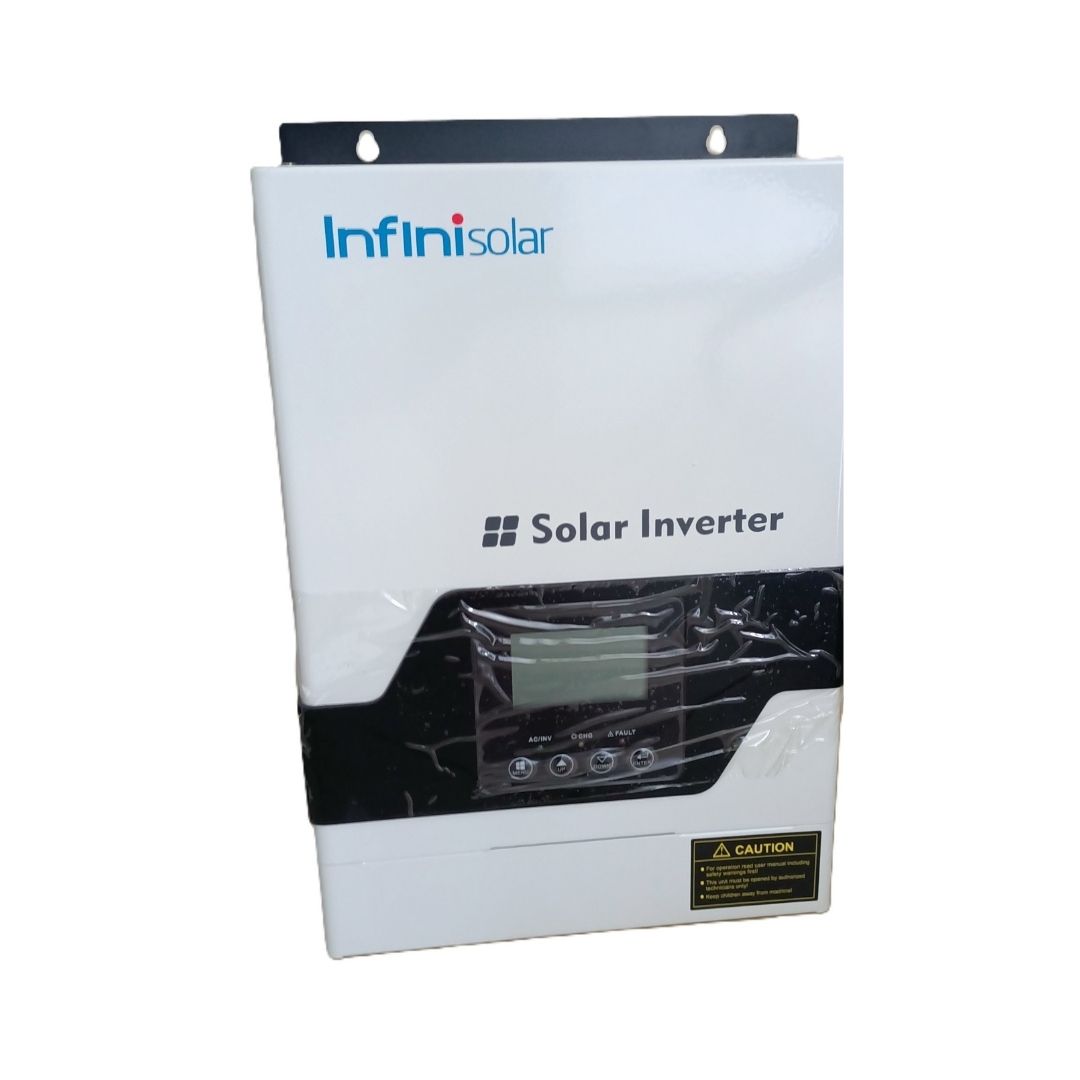

Brand: Infinisolar
Model Name: PV1800
MD: PV18-3024 VPM
Operating temperature range: -10°C-50°C
Protection class: Class I
Protection degree: IP 20
Inverter Mode
Rated power: 3000VA/3000W
DC Input: 24VDC, 130A
AC Output: 230VAC 50Hz 13A 1ɸ
Output power factor: 1.0
AC Charger Mode
AC Input: 230VAC 50Hz 17.7A 1ɸ
DC Output: 27VDC 30/20A
Solar Charger Mode
Rated current: 60A
System voltage: 24VDC
MPPT voltage range: 30-120VDC
Max Solar Voc: 145VDC
Max charge current: 80A
