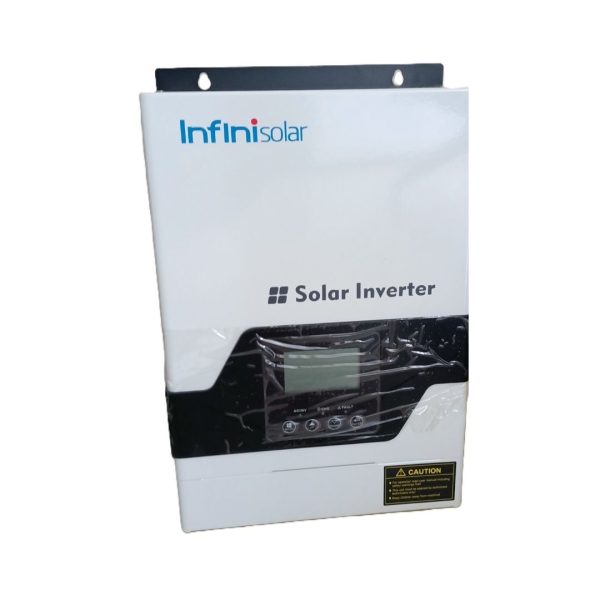

Brand: Infinisolar
Model Name: PV1800
MD: PV18-1212 VPM
Operating temperature range: 0-50°C
Protection class: Class I
Protection degree: IP 20
Inverter Mode
Rated power: 1200VA/1200W
DC Input: 12VDC, 150A
AC Output: 220VAC 50/60Hz 5.22A 1ɸ
AC Charger Mode
AC Input: 220VAC 50/60Hz 7.54A 1ɸ
DC Output: 13.5VDC 20A/10A
Solar Charger Mode
Rated current: 60A
System voltage: 12VDC
MPPT voltage range: 15-105VDC
Max solar voltage Voc: 105VDC
Max charge current: 70A
