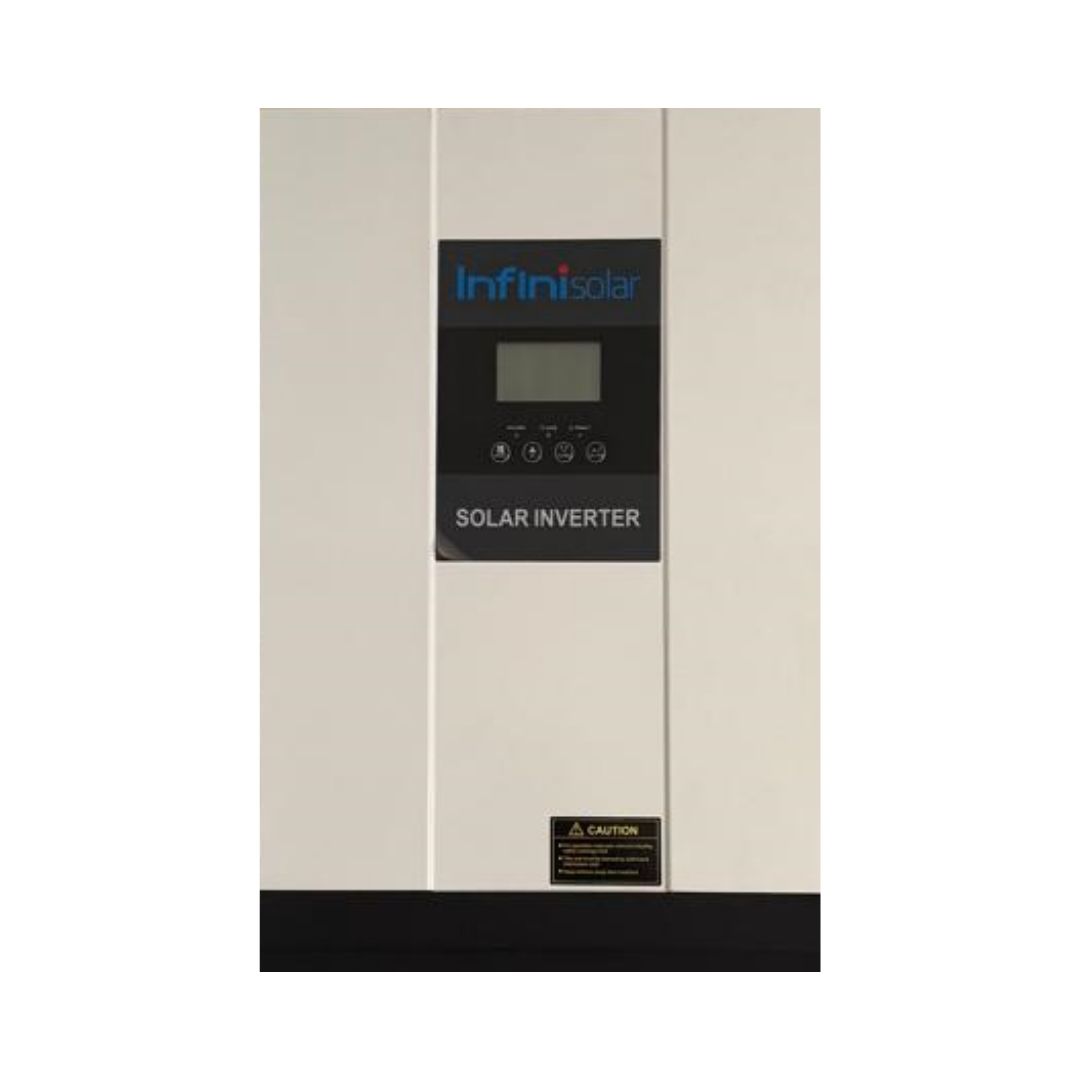

Brand: Infinisolar
Model Name: PV1800
MD: PV18-5048 VHM
Operating temperature: -10°C-50°C
Protection class: Class I
Protection degree: IP 20
Inverter Mode
Rated power: 5000VA/5000W
DC Input: 48VDC, 118A
AC Output: 220VAC 50/60Hz 22A 1ɸ
AC Charger Mode
AC Input: 220VAC 50/60Hz 35A 1ɸ
DC Output: 54VDC 60A(Max)
Solar Charger Mode
Rated current: 80A
System voltage: 48VDC
MPPT voltage range: 60-130VDC
Max Solar Voc: 145VDC
Max charge current: 140A
