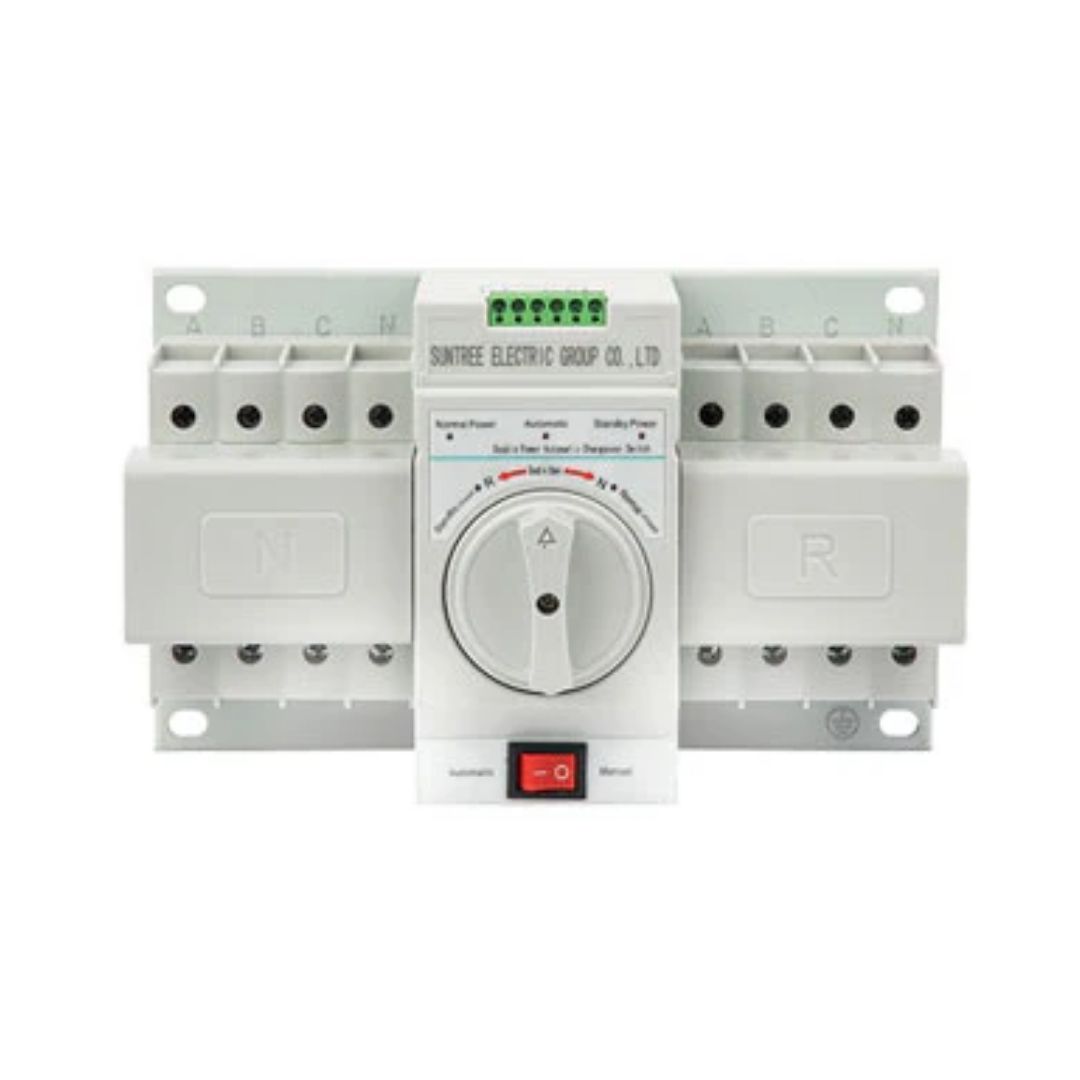

Description:
Wall mount installation. Has overload and short-circuit protection. Strong anti-interference ability Quick Transfer reliable performance. Small size, with firefighting, power generation and other functions. Suitable for important power supply places where power failure is not allowed.
Technical Specifications:
- Brand: Suntree
- Model: SQ3W-63/4P
- Rated current Ie: 63A
- Rated operating voltage, Ue (V): 400VAC
- Rated insulating voltage Ui (V): 690VAC
- Rated impulse withstand voltage (KV): 4KV
- Rated short circuit making capacity Icm: 6kA
- Rated short circuit breaking capacity Icn: 5kA
- Service life: 5000 times
- Electric equipment grade: CB Class
- Controller: Type A(basic type)
- Rated control supply voltage,Us(V): 230V 50Hz
- Operating transfer time (no time delay): ≤3s
- Poles: 4P
- Phase: Three phase
- Standard: IEC 60947-6-1
