Description:

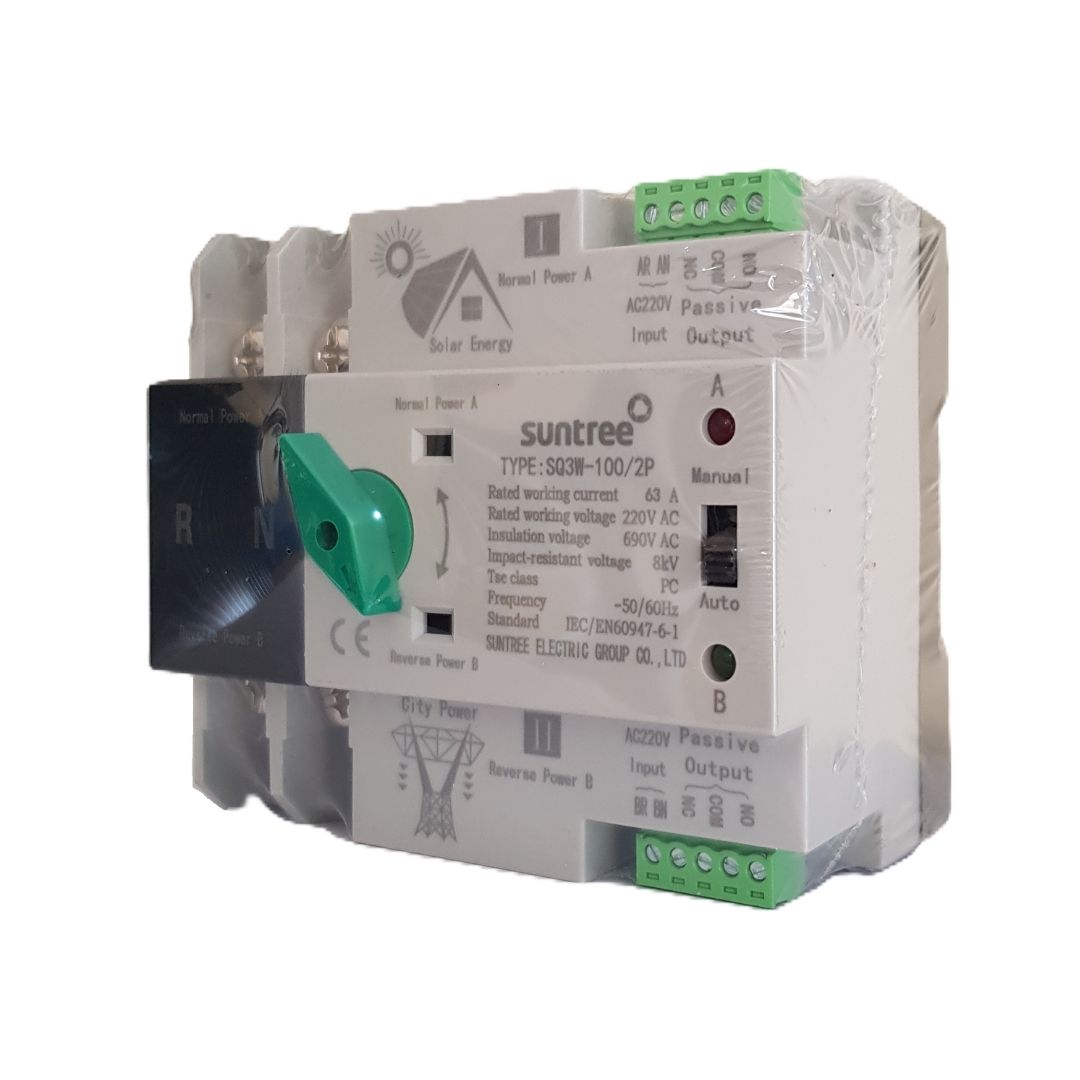

Din rail installation. Long service life. Is widely used in various situations where continuous power outage is unavailable. Has the option to be operated manually. Is composed of TSE and controller.
Technical Specifications:
- Brand: Suntree
- Model: SQ3W-100/2P
- Rated working current: 63A
- Rated working voltage: 220VAC
- Insulation voltage: 690VAC
- Impact reistant voltage: 8kV
- TSE class: PC
- Frequency: 50/60 Hz
- Poles: 2P
- Phase: Single
- Standard: IEC/EN60947-6-1
