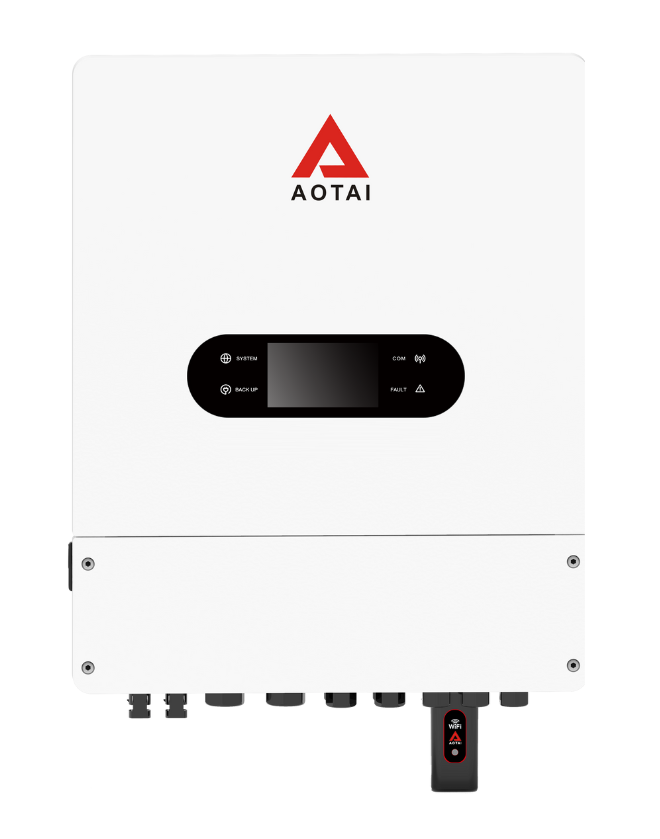

Brand: Aotai
Model Name: AEP-5KS48P
Rated power: 5kW
Rated battery voltage: 48V
Phase: Single Phase
PV Input
Maximum DC input power: 10kW
Maximum DC input voltage: 500VDC
MPPT Operating Voltage Range: 150-450VDC
Maximum Input Current: 18/18A
No. of MPPTs: 2
AC Output (On-Grid)
Rated Output Apparent Power: 5500W
Rated Output Voltage: 220/230V
Rated Output Frequency: 50/60Hz
Maximum Output Current: 25A
AC Output (Off-Grid)
Rated Output Apparent Power: 5000W
Rated Output Voltage: 230V
Rated Output Frequency: 50/60Hz
Maximum Output Current: 23A
