Description:

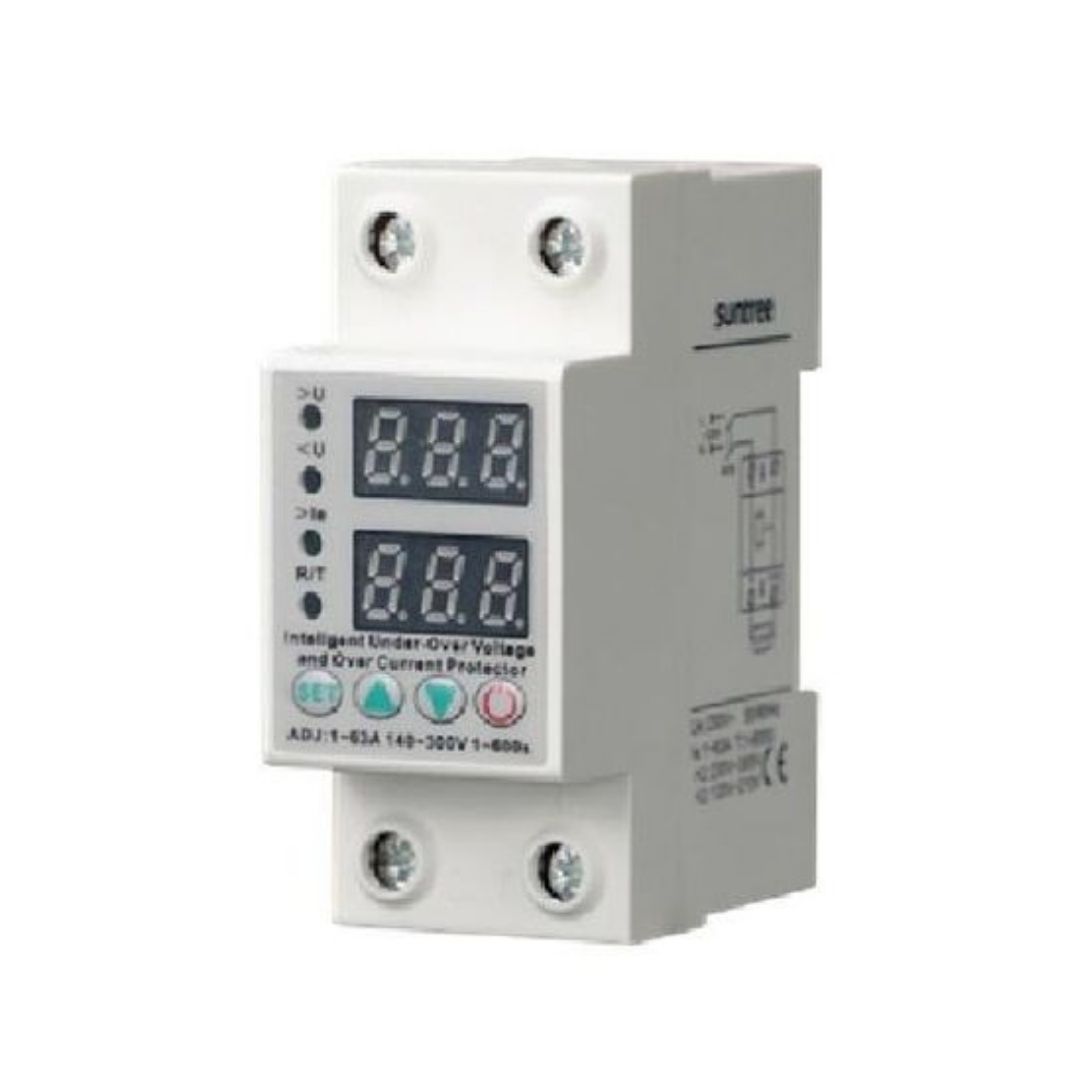

Din rail mounting. Microcontroller based. Digit display for operating voltage and current values. Parameters setting by keys. LEDs indication for over/under voltage and current faults.
Technical Specifications:
- Brand: Suntree
- Supply teminals: N,L
- Poles: 2P
- Phase: single
- Rated supply voltage: 220VAC
- Rated frequency: 50/60 Hz
- > U setting range: 130-300V
- U setting range: 80-210V
- Voltage hysteresis: 5V
- Overvoltage trip delay: 0.5s
- Voltage accuracy: <1%
- Max. operating phase voltage: 350V
- Max. operating current: 40A/63A
- Altitude: <2000m
- Ambient temperature: -25°C~50°C
- Permissable relative humidity: <50% @ 40°C (without condensation)
- Storage temperature: -25°C~55°C
- Net weight: 159g
- Size: 81*36*66mm
