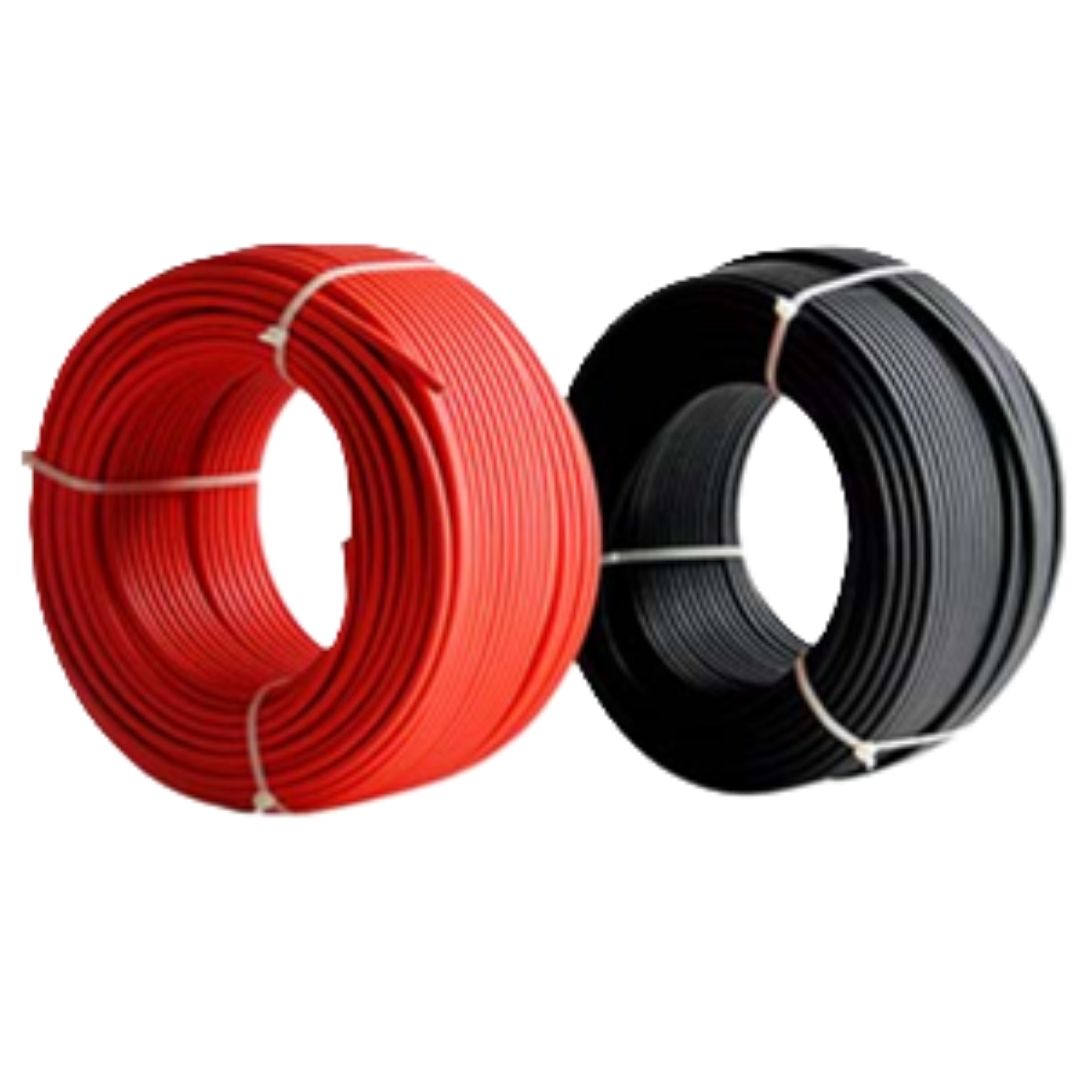

Description:
UV and ozone resistant, hydrolysis resistant. High temperature resistance, service life of more than 25 years. Good flexibility, easy installation and laying. Halogen-free and low-smoke material, in line with environmental protection requirements. Compatible with all common connectors. Price per meter.
Technical Specifications:
- Brand: Suntree
- Model: H1Z2Z2-K
- Nominal cross-section: 6mm2
- No. of cores: Single core
- Rated voltage: 1500VDC
- Ambient temperature: -40℃~+90℃
- Conductor maximum temperature: 120℃
- Maximum short circuit temperature: ≤250℃/5s
- Expected service life: 25 years
- Conductor: Tinned copper flexible conductor of Class 5 in 2Pfg1169
- Insulation: LSZH electron-beam cross-linked Polyolefin(125℃)
- Sheath: LSZH electron-beam cross-linked Polyolefin(125℃)
- Colour: Red or black
