Description:
Quickly dissipate heat and reduce the service temperature. Plug-in clips, Easy module replacement. Flash Barrier, Prevent arc propagation in current impact. Use a suitable electrical insulator to keep a 10mm min.safety distance from the PV-SPD and other grounded parts in the housing. The green and red visual indicator flags show the module protective status (green = good, red = replace). Features visual indication and optional remote contact signaling (floating changeover contact). Feature a combined disconnection. Short-circuiting (shunting) device with safe electrical isolation to Prevent fire damage due to DC arcs.
Technical Specifications:

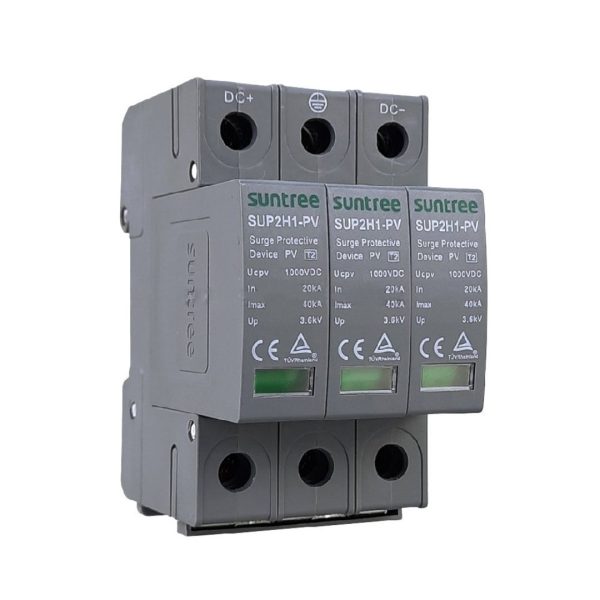

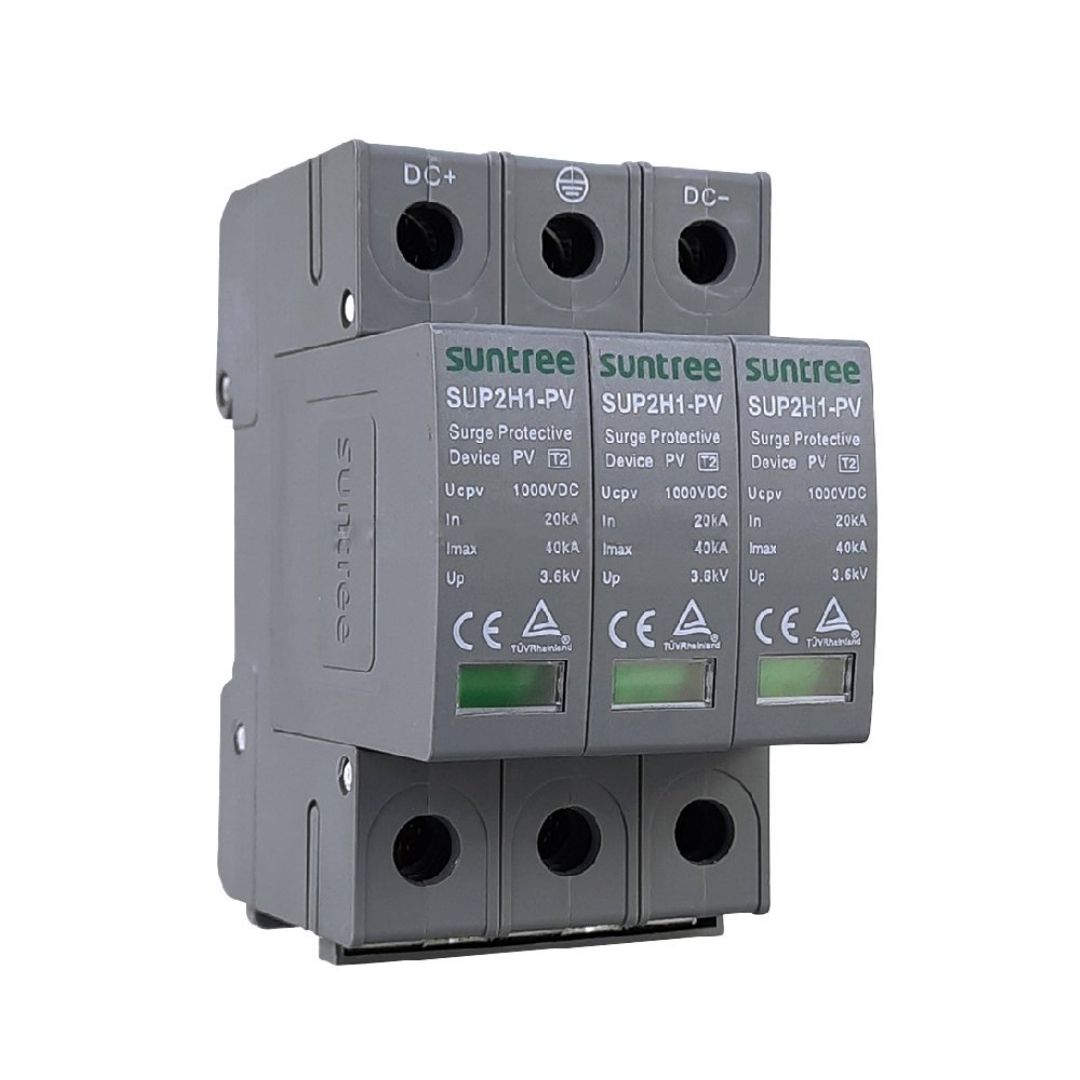

- Brand: Suntree
- Model: SUP2H1-PV
- In: 20kA
- Imax: 40kA
- Maximum continuous operating voltage Ue: 1000VDC
- Protection level (In) Up: 3.6kV
- Service temperature: -40℃~+70℃
- Relative humidity: ≤95% (25℃)
- Installation mode: 35mm standard guide rail
- Window indication: Normakt green; Failure: Red
- Ingress protection: IP20
- Numbers of poles: 3P
- Leakage 0.75u ImA (uA): ≤20
