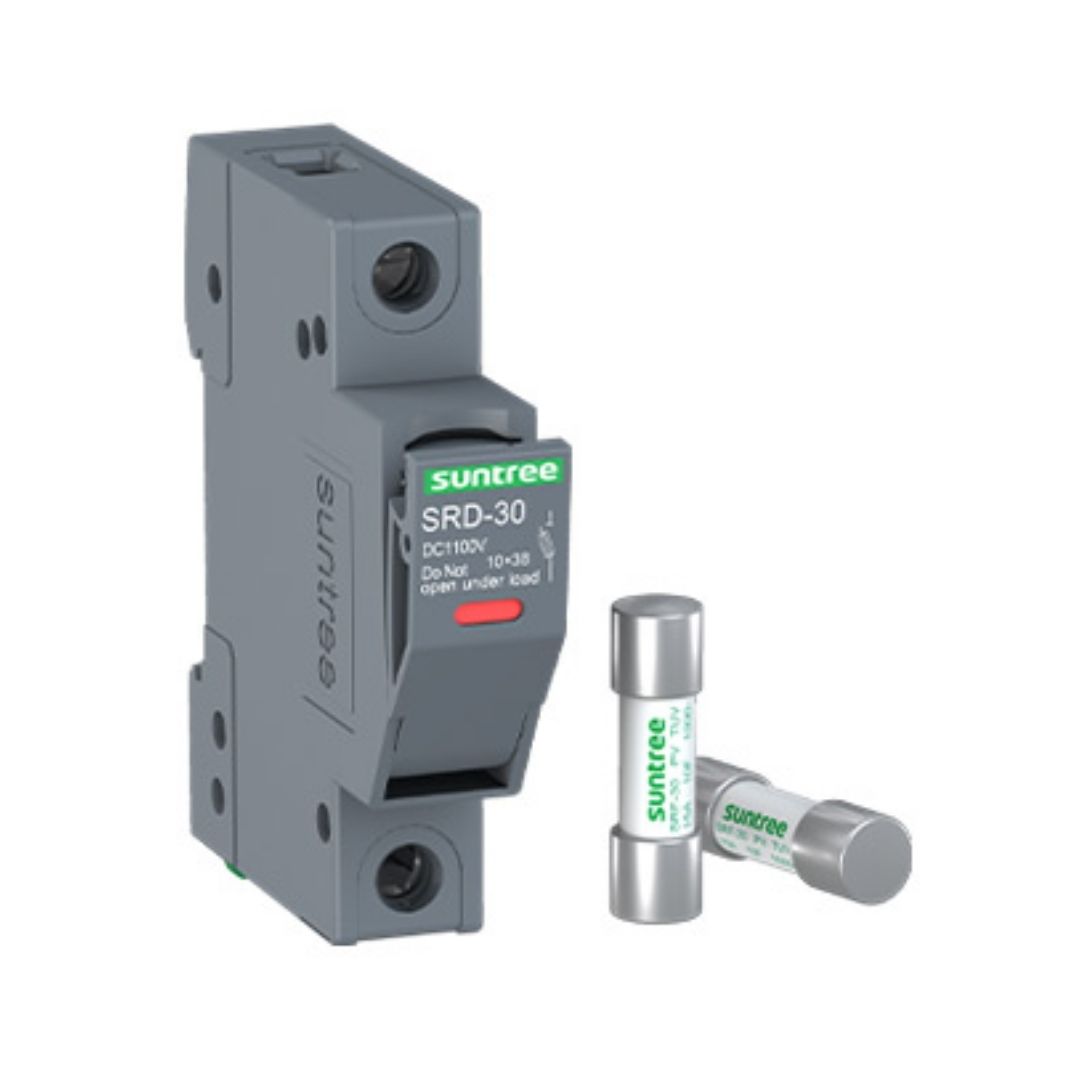

Description:
Usage: Low Voltage, Solar PV. Safety Standards: IEC. Type: Thermal DC fuse. Short-circuit breaking capacity 33KA. Plug Design, quick change fusible core Improve efficiency. Indicator window design, signal of whether the fused core is fused or not (the light is on when it is blown, it is not on). PA66 flame retardant material. Overload protection and short circuit protection. Busbar design, reliable and beautiful wiring. Photovoltaic set of strings all need to be equipped with DC fuse protection circuit to remove faults.
Technical Specifications:
- Brand: Suntree
- Model: SRF-30
- Rated insulation voltage Ui: 1200V
- Rated service voltage Ue: 1000VDC
- Rated operating current le: 20A
- Rated impulse withstand voltage Uimp: 6kA
- Rated acceptable power dissipation: ≤4W
- Numbers of poles: 1P
- Rated limiting short circuit current: 30kA
- Fuse dimensions for use: φ10x38mm
- Ingress protection: IP20
- Use category: PV-0
